Extenda Swim Wood Fired Swimming Pool Heater

$2498.98 to $2998.98

Share

Heat your pool with wood! Extenda Swim wood fired pool heaters are now available in two sizes to heat pools from 8,000 gallons up to 20,000 gallons.

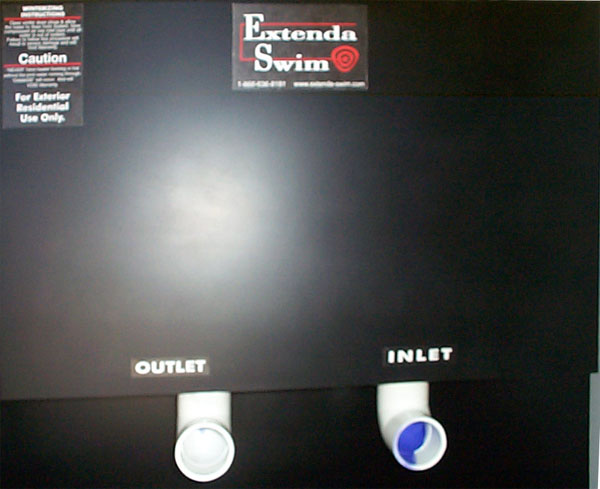

The revolutionary Extenda Swim wood fired swimming pool heater is the perfect alternative to high gas or electric utility bills. With our exclusive design you get a return flow into your pool heated by 3-5 degrees. Not only is the running cost of the heater virtually free because any kind of wood can be used, but you don't need to pay an electrician or gas-propane company to install the heater. Installation is so easy with only 2 pipes to connect, in and out, no electric or gas connections needed. This is the obvious choice for extending your pool season and enjoying your summer months without the worry of a cool weather period ruining your plans. For exterior use only.

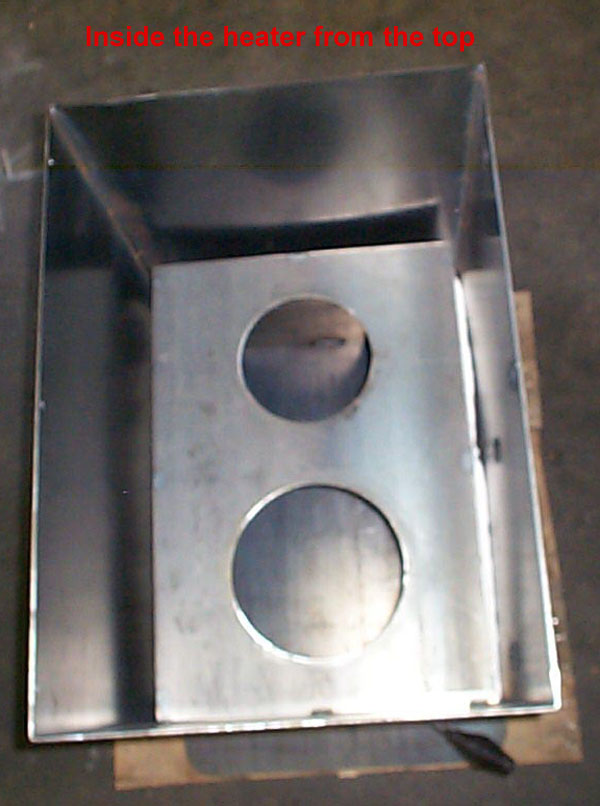

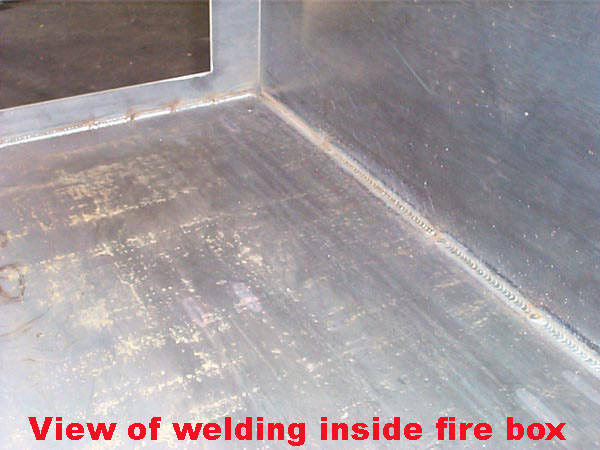

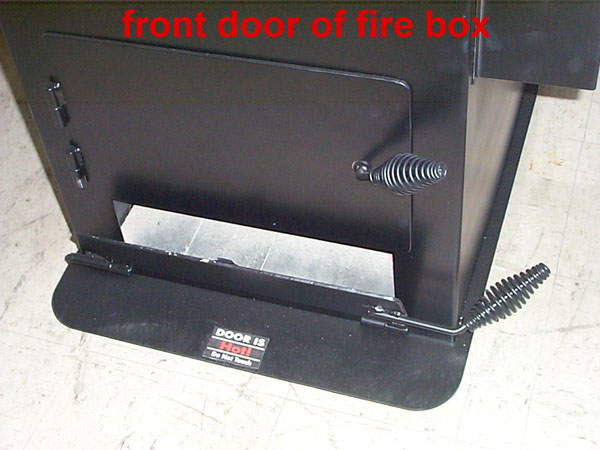

Made of 10 and 12 gauge hot rolled steel, with 1/4" inch thick doors and firebrick lined fireboxes. Fully insulated with 1.5" thick fire insulation to provide maximum heat transfer, efficiency and safety, keeping the exterior from getting excessively hot. All heaters are tankless. Your pool pump pushes a continuous flow of water through the heat exchanger while the fire heats it. All welded, heavy steel construction, with firebrick lined firebox. Insulated to provide maximum heat efficiency. It's easy to install and set up, and burns logs up to 24" long.

Save money! Capable of increasing the water temperature from 60 to 80 degrees in 48 hours, in a 16' x 32' 20,000 gallon above-ground swimming pool while covered. This heater also raises the temperature in 20' x 40' 35,000+ gallon in-ground swimming pool from 55 degrees to 85 degrees in 48 hours, based on an outside temperature of 50 degrees. A solar/thermal blanket was used to contain the heat generated.

  • Rated at 100,000+ BTUs (BTU output varies by type of wood)
  • Huge savings compared to running a gas or electric pool heater.
  • Heater dimensions are 36" high x 27" wide x 33" deep and 420 lbs. (Heater stands 5' 8" at top of chimney cap)
  • Comes with 24" long stove pipe, chimney cap and temperature thermometer.
  • Backed by a 2 year warranty on materials and workmanship.

Single Layer Stainless Steel Heat Exchanger (60 total feet of pipe, handles up to 65-70 GPM)

  • Comes with a 24" long, 8" diameter chimney pipe, cap & magnetic thermometer.
  • Average BTU output 70,000 to 80,000 (Adding wood every 75-90 minutes)
  • Measures 21" high x 20" wide x 33" long and weighs 265 lbs.(Heater stands 4� 5"; feet tall at top of cap)
  • Inside of fire box measures 28" deep 17" wide and 14.5" tall.
  • Capable of heating an 8,000 gallon pool by 1.° per hour with a solar cover.
  • Painted with heavy duty exterior Hi-Temp glossy black powder coat paint.
  • Capable of increasing the water temp from 55 to 85 degrees in 2-3 days on a 8,000 to 15,000 gallon pool.while covered with a solar blanket.

Three Layer Stainless Steel Heat Exchanger (75 total feet of pipe, handles up to 75-85 GPM)

  • Comes with a 24" long, 8" diameter chimney pipe, cap & magnetic thermometer.
  • Average BTU output 150,000 to 170,000 (Adding wood every 75-90 minutes)
  • Measures 32" high x 27" wide x 33" long and weighs 440 lbs. (Heater Stands 5� 6" At Top Of Chimney Cap)
  • Inside of fire box measures 27" deep 17.5" wide and 21" tall.
  • Capable of heating a 20,000 gallon pool by 1° per hour with a good fire
  • Painted with heavy duty exterior Hi-Temp glossy black powder coat paint.
  • Capable of increasing the water temp from 55 to 85 degrees in 2-3 days on a 20,000 to 30,000 gallon pool.while covered with a solar blanket.

Documentation and Support

See these links for more information about this product

Order Chart

Get it here!

Order No.   Description Sale Price Quantity
ESWB201Extenda Swim Wood Fired Pool Heater

Extenda Swim Wood Fired Pool Heater

$ 2498.98
ESWB301Extenda Swim Wood Fired Pool Heater Large

Extenda Swim Wood Fired Pool Heater Large

$ 2998.98
